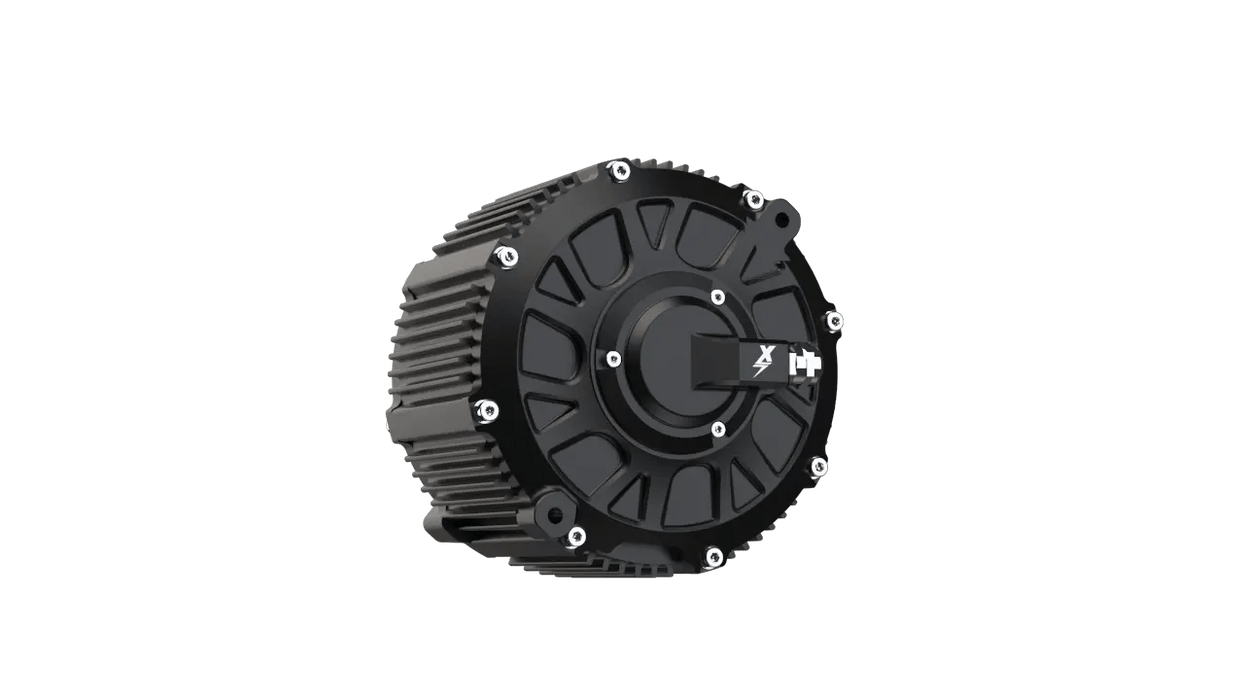

EBMX XLB-60 RACE Motor (Air Cooled)
Official EBMX Installation Video:
The EBMX motor range has been specifically designed to surpass the performance of other motors in their classes.
The XLB-60 RACE edition, designed for speed and maximum RPM, this is the fastest motor on the market!
Using our EBMX rotor design we have lengthened the torque band to create a constant pulling force from 0 to 13000RPM. The XLB60 RACE is aimed at the racer, from MX to trail or even the drag strip, designed to handle the heat and bring insane levels of RPM.
The EBMX motors have been custom built and are finely tuned to work with the EBMX X-9000 controller.
Harness and mount sets are available to use this motor with SurRon Light Bee or Eride Pro.
The EBMX XLB-60 RACE motor delivers unmatched speed and performance, engineered to outperform others in its class. Featuring our advanced rotor design, it maintains a powerful, consistent torque from 0 to 13,000 RPM, ideal for racers across MX, trail, or drag strip disciplines. Built to endure heat and maximize RPM, this motor pairs perfectly with the EBMX X-9000 controller. Compatible harness and mount sets make it easy to upgrade your SurRon Light Bee or Eride Pro. Experience the ultimate in acceleration and control with the XLB-60 RACE, crafted for those who demand the fastest ride.
The motor has a larger stator that its little brother the XLB-60 going up from 60 to 65mm and a screaming 105kv wind.
More Power, More Speed, More Fun, More Savage!
Eride 1.0, 2.0 and 3.0 require a mandatory battery upgrade to run the XLB-60 RACE Motor.
Recommended Gearing:
Off Road: 18 inch 58T-64T( 75MPH top speed with 64T/72V)
Off Road: 16 inch 54-58T
Off Road 17 inch 56T - 60T
For maximum torque off-road, choose the largest sprocket option determined by your rear wheel size. For maximum speed on road, consider going with the smallest sprocket size.
Recommend X9000 Settings on a 400Amp BMS 20S/22S:
1000 Phase / 30KW
900 Phase / 25KW
800 Phase / 20KW
Need more range? try turning field weakening to 0%. With a 64T sprocket off road riding on 21/18 wheels, 65MPH is easily achievable on a 72V battery. This can help increase range by up to 15%.
Real World Motor Testing Results
Your results may vary based on rider weight, gearing and battery performance.
85KG Rider
75KG EBMX Built Surron
64T Sprocket
1000 Phase Amps
500 DC amps
22S 81V Race Battery
Peak Power 36 - 38KW
These motors are significantly faster than standard motors, and their extreme speed can pose serious risks if not handled with caution.
